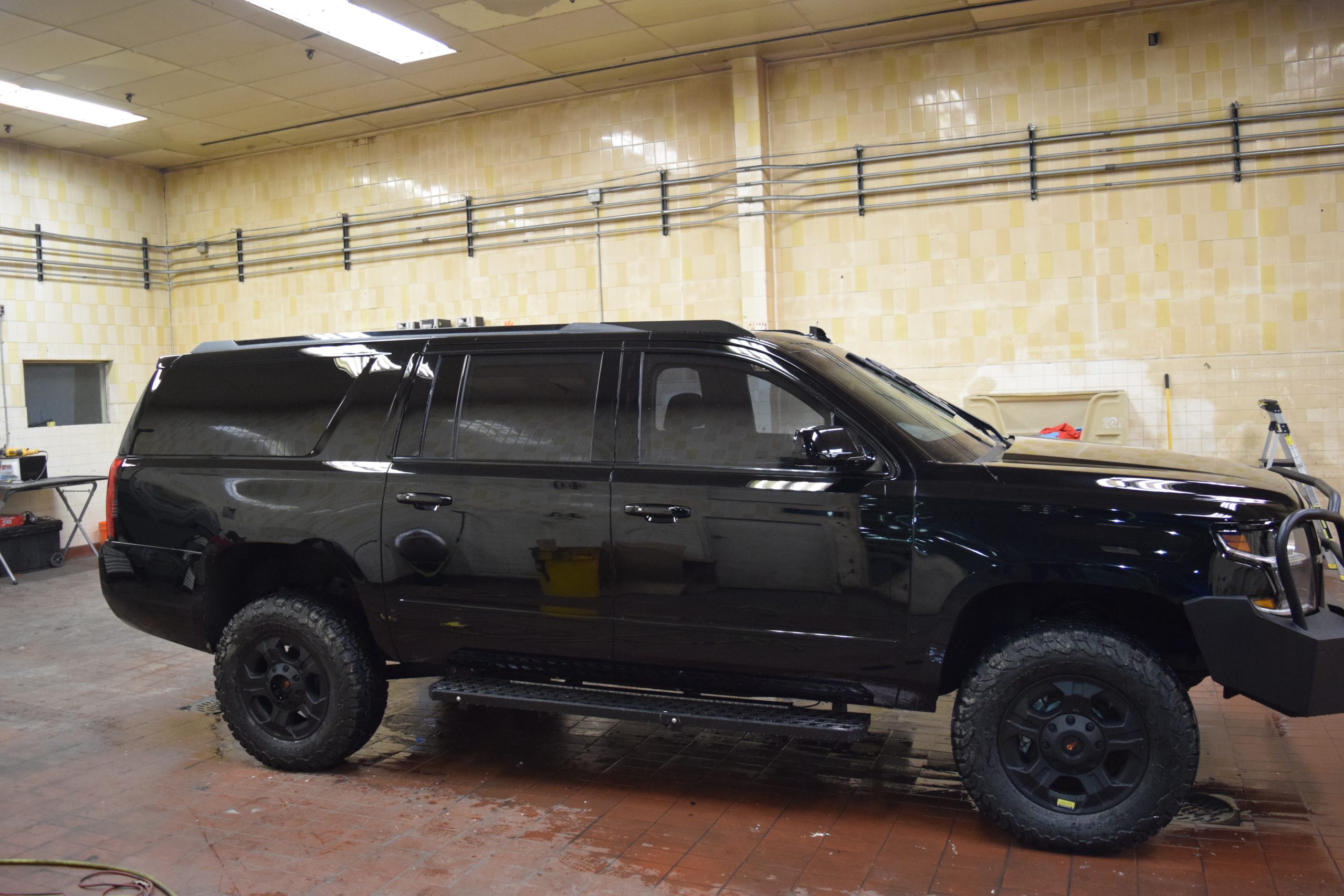

The TAG Armored SWAT Suburban is designed to offer departments an armored rescue vehicle that is more discreet, mobile, and affordable than an APC, yet offers some of the same deployment and armor advantages. More and more departments are looking for armor to protect their officers, yet it has been increasingly difficult due to budget constraints and public opinions. An armored SUV or Pickup can provide a department rifle round rated and blast protection that doesn’t look as aggressive, is more maneuverable, is less expensive and can be used in more operations.
Locks - All door locks remain OEM and retain all OEM functionality. Rear bulkhead door has slam lock.

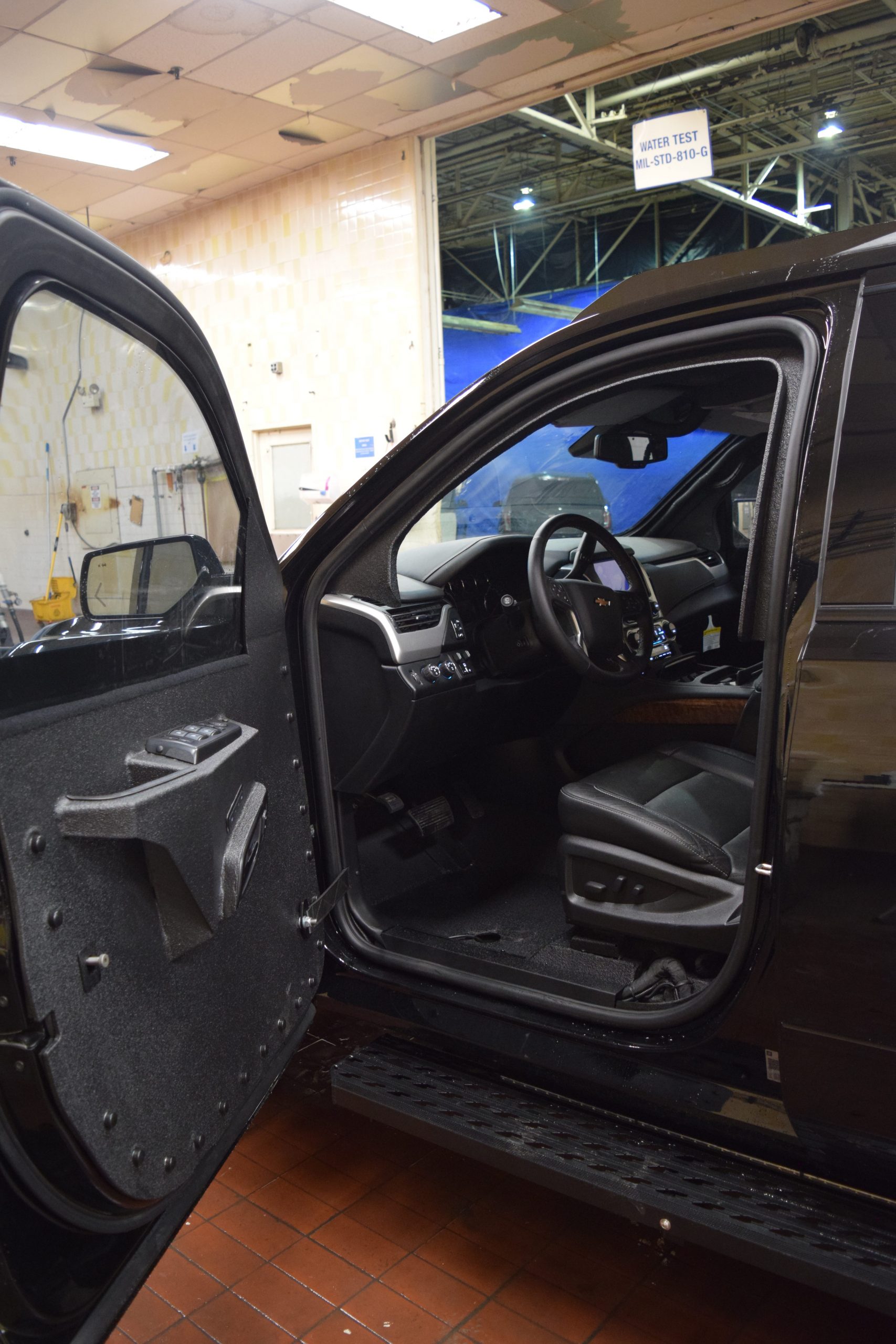

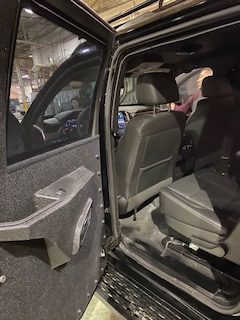

Doors - A, B and C pillar reinforced. Door overlaps from beltline up with returns. Overlaps can be Rhino lined. TAG reinforced hinges attached to pillar reinforcement. Hinge reinforcement in door tied to door armor. Heavy duty nylon strap retainer to prevent overextension.

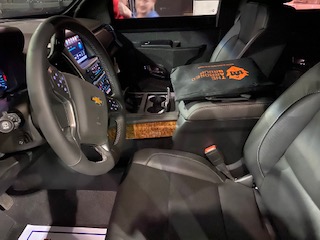

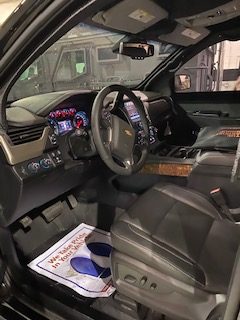

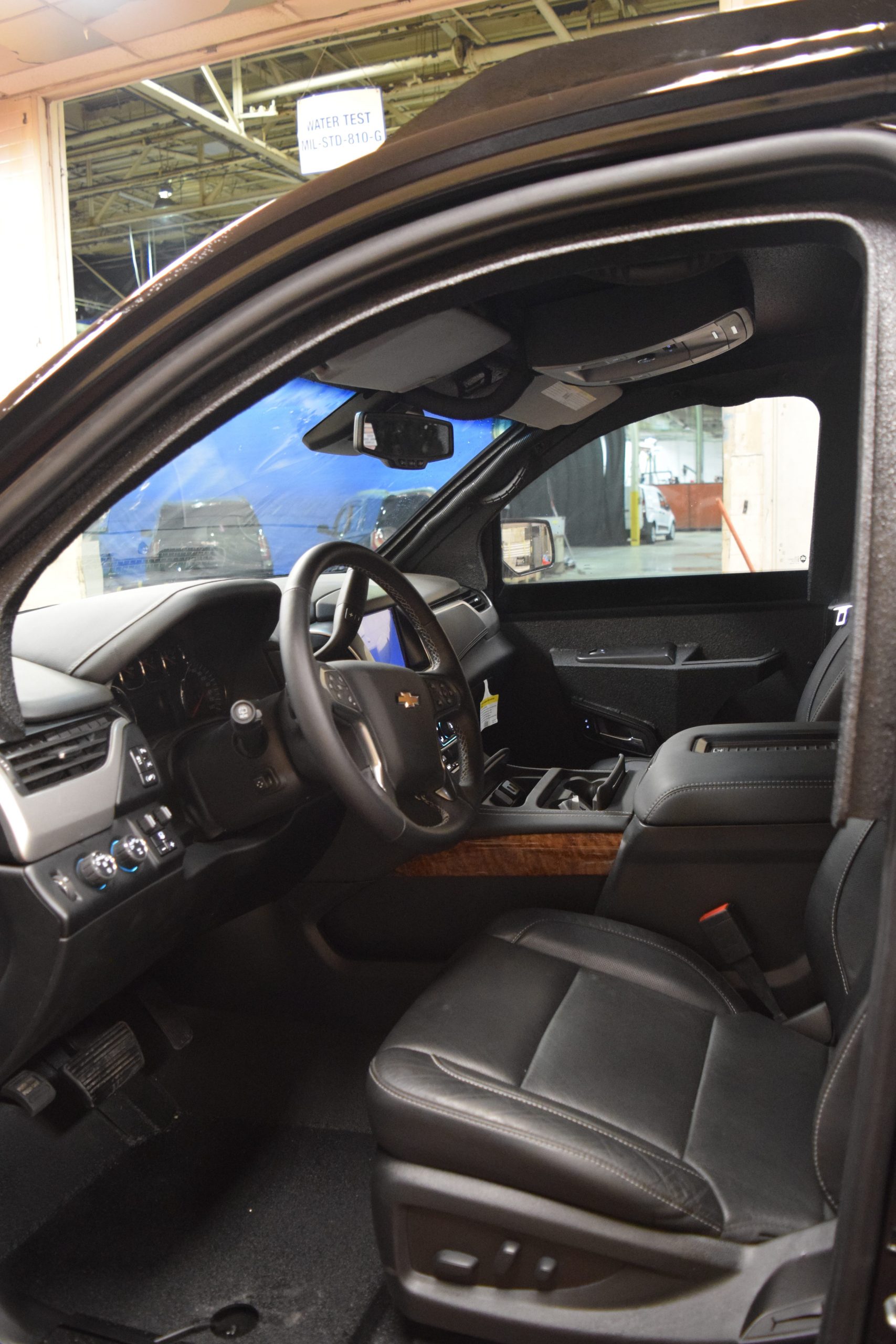

Interior - Rhino lined material on all interior. TAG Designed steel door panels for durability
Brakes - Brakes upgraded with heavy brake kit

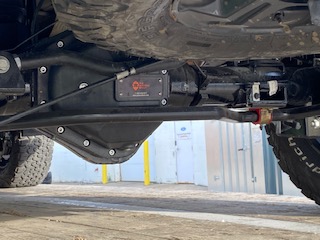

Suspension - heavy duty axle change for 12,000 lbs GVW - include both axle , suspension, E rated tires and wheels
Tires - OEM tires will be replaced with E-range tires and run-flat devices in all tires including spare
Under hood - Gel cell battery in place of OEM without armor, fuse box and ECM armor
Operable Windows - All four windows provide 6-8" of operability
Fuel Tank - armored
Tailpipe - protected to prevent insertion of foreign objects
B6/NIJ III Armor Level with certified ballistic steel
Floor-Blast mitigating floor to stop a minimum of 2 DM51 hand grenades set off simultaneously

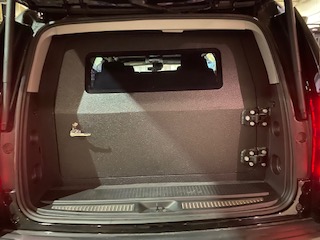

Vertical Walls and Rear Bulkhead - Armored to B6/NIJ III Level with certified ballistic steel
Firewall and Roof - Roof and firewall armored to B6/NIJ III Level with certified ballistic steel
Transparent Armor - 40 mm transparent armor, door glass will be offset and partially operational
in OEM track

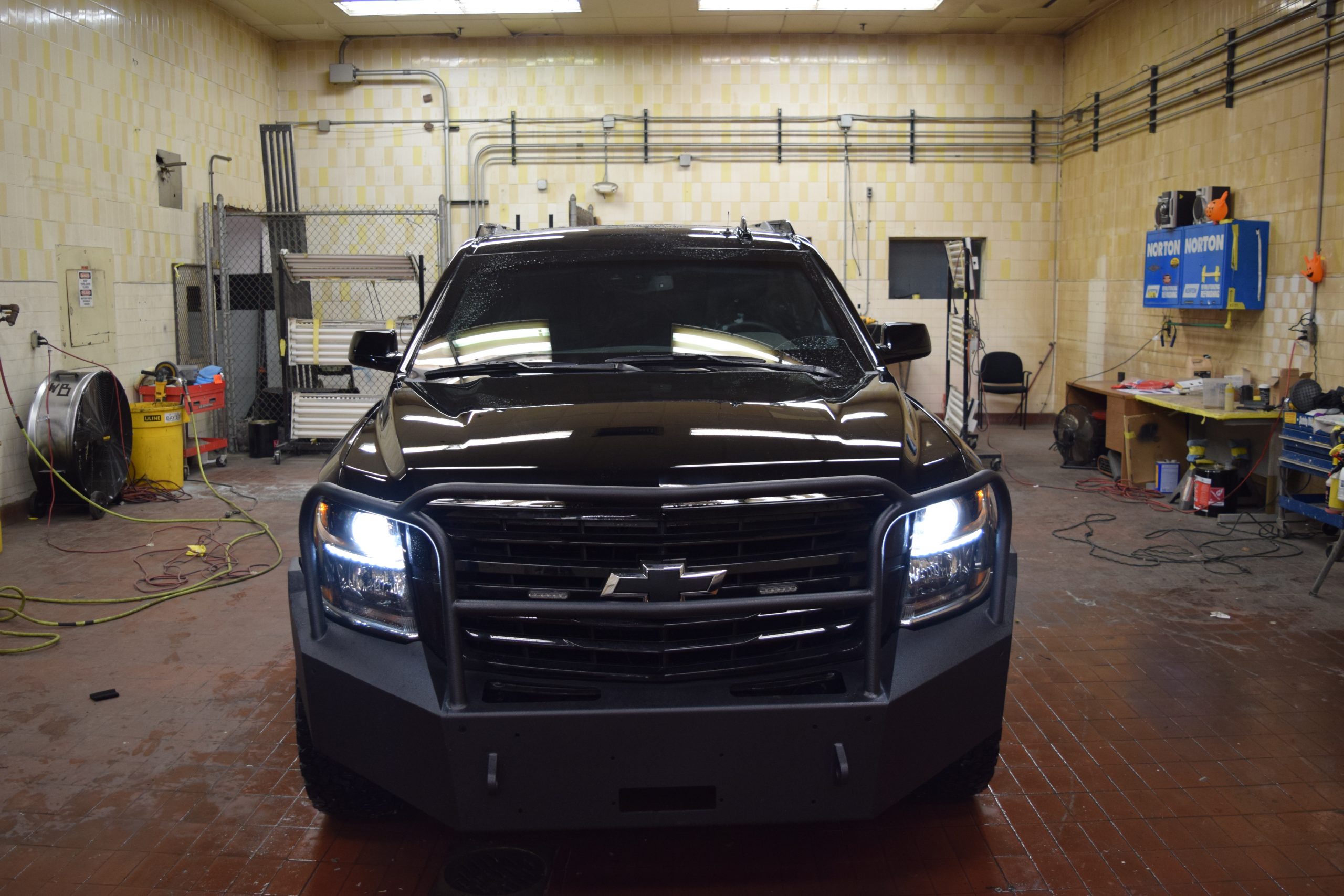

Front ram bumper- hidden radiator protection
(2)red/blue combo strobe lights in grill

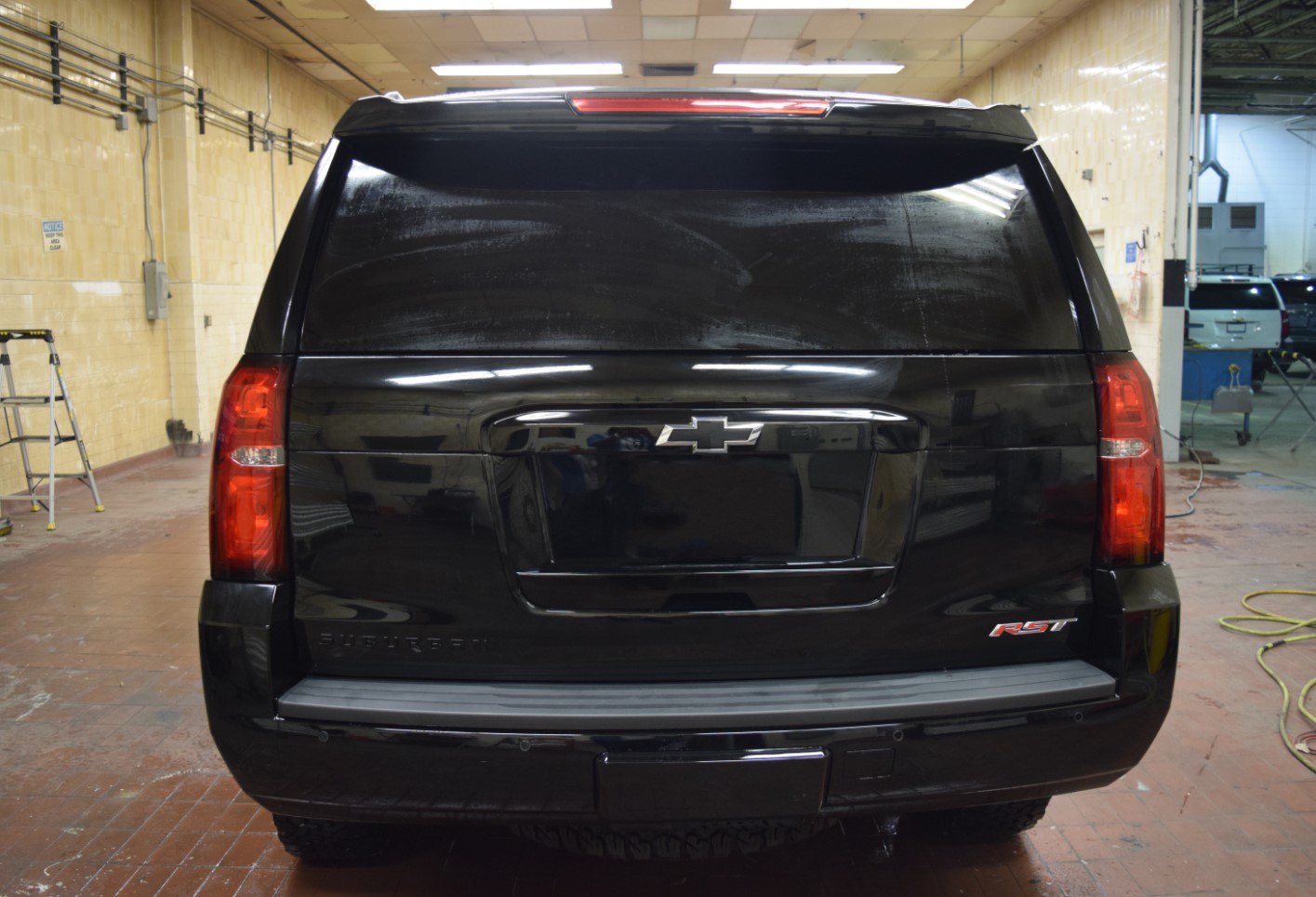

(2)red/blue combe strobe lights behind OEM glass in rear hatch
200 W Siren/Public Address System
Wig wags -front head lights
Wig wags - rear tail lights
(2) red/blue combo strobe lights located above running board on both sides of vehicle

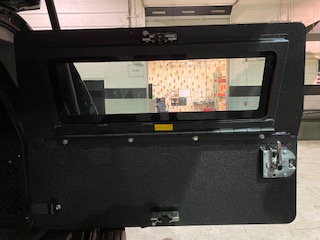

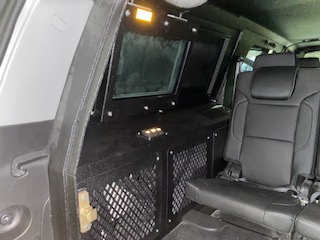

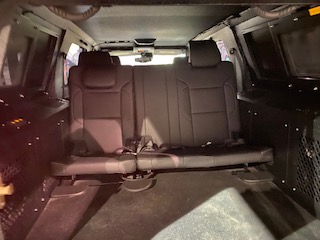

Third row seat turned around backwards - back bulkhead window to fold down - button to open
OEM window from the inside
USB charging ports at all seat locations

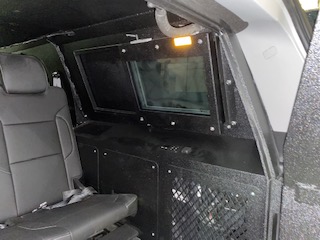

12" x 24" sliding window behind quarter glass to serve as a gunport to shoot through the OEM glass
Heavy duty handrail in place of OEM to be used as handrail for people on the running boards
Heavy duty running boards to support the weight of 3 officers - running boards will not extend past the mirrors
LED light on the inside of OEM rear hatch to shine down when door is in the open position
Radio prep package
For More Information:
Call 855-824-7233 or complete the form below
Armoring Levels
The Armored Group is supremely experienced in building highly capable Armored SWAT Chevrolet Suburban vehicles. There are a variety of armoring options for the Armored SWAT Chevrolet Suburban. No matter your armoring requirements, The Armored Group provides all levels of armor protection including CEN, NSA, NIJ, UL and VPAM. Don’t trust the safety of your personnel or your belongings to anyone else.
When you need an armored car, it must meet your threat level. The experts at The Armored Group work with you to determine the best armored level for your situation and outfit your armored car accordingly. Please contact our experts to learn more about the armoring options for the Armored SWAT Chevrolet Suburban.
Click the below armoring level tabs to learn more about each armoring level.
CEN, the European Committee of Standardization, is an association that brings together the National Standardization Bodies of 34 European Countries.
CEN provides a platform for the development of European Standards and other technical documents in relation to various kinds of products, materials, services and processes.
CEN supports standardization activities in relation to a wide range of fields and sectors including: air and space, chemicals, construction, consumer products, defense and security, energy, the environment, food and feed, health and safety, healthcare, ICT, machinery, materials, pressure equipment, services, smart living, transport and packings.
Level
Weapon
Caliber
Weight (G)
Range (M)
Speed (M/S)
# Shots
B1
.22LR
2.6 ± 0.1
10.00 ± 0.5
360 ± 10
B2
9mm Luger
8.0 ± 0.1
5.00 ± 0.5
400 ± 10
B3
.357 Magnum
10.2 ± 0.1
5.00 ± 0.5
430 ± 10
B4
.44 Magnum
15.6 ± 0.1
5.00 ± 0.5
440 ± 10
B5
5.56x45mm / SS109 & M193
4.0 ± 0.1
10.00 ± 0.5
950 ± 10
B6
7.62 x 51mm / M80 Nato Ball
9.5 ± 0.1
10.00 ± 0.5
830 ± 10
B7
7.62 x 51mm AP
9.8 ± 0.1
10.00 ± 0.5
820 ± 10
The chart above represents CEN EN 1063, 1522/1523 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
In Nato a Standardization Agreement (STANAG) defines processes, procedures, terms, and conditions, for a common military or technical procedures or equipments between the member countries of the alliance. Each NATO state ratifies a STANAG and implements it within their own military.
The purpose is to provide common operational and administrative procedures and logistics, so one member nation's military may use the store and support of another member's military.
STANAGs also form the basis for technical interoperability between a wide variety of communication and information systems (CIS) essential for NATO and Allied operations.
Level
Weapon
Caliber
Weight (G)
Range (M)
Speed (M/S)
Enery (J)
1
7.62 x 51mm / M80 Nato Ball
9.5
30
833
3,296
1
5.56 x 45mm / SS109
4
30
900
1,620
1
5.56 x 45mm / M193
3.56
30
937
1,563
2
7.62 x 39mm / API BZ Round
7.77
30
695
1,877
3
7.62 x 54mm / B32 API Round
8.4
30
854
3,647
4
14.5mm x 114 / B32 API Round
63.4
200
911
26,308
Blast Threat
Level
Threat Description
1
DM-31 Anti-Personnel Mine
HG-85 Hand Grenade
DM-51 Hand Grenade
Various Unexploded Subminitions
2
6 KG Blast Anti-Tank Mine
A. Mine explosion pressure activated under any wheel or track locations
B. Mine explosion under vehicle center
3
8 KG Blast Anti-Tank Mine
A. Mine explosion pressure activated under any wheel or track locations
B. Mine explosion under vehicle center
4
10 KG Blast Anti-Tank Mine
A. Mine explosion pressure activated under any wheel or track locations
B. Mine explosion under vehicle center
Artillery Threat
155mm HE Frag Round Simulates: 12.7mm FSP 13.4G / 20mm FSP 52 G
Level
Angle (°)
Elevation (°)
Distance (M)
1
360
18
100
2
360
22
80
3
360
30
60
4
360
-
30
The chart above represents STANGA 4569 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles. Additionally, The Armored Group LLC follows AEP-55 guidelines for testing in our products.
The Technology Assessment Program is sponsored by the Office of Development, Testing, and Dissemination of the National Institue of Justice (NIJ), U.S. Department of Justic. The progam responds to the mandate of the Justice System Improvement Act of 1979, which created the NIJ and directed it to encourage research and development to improve the criminal justice system and to disseminate the results of the Federal, State, and local agencies.
The Technology Assessment Program is an applied research effort that determines the technological needs of justice system agencies, sets minimum performance standards for specific devies, tests commercially available equipment against those standards and disseminates the standards and the test results to criminal justice agencies nationwide and internationally.
Level
Weapon
Caliber
Weight (G)
Range (FFT/S)
Speed (M/S)
# Shots
1
.22LR
2.6
1050 ± 40
320 ± 12
2A
9mm Luger
8.0
1250 ± 50
332 ± 12
2
.357 Magnum
10.2
1395 ± 15
424 ± 15
3A
.44 Magnum
15.55
1400 ± 50
426 ± 15
3
7.62mm 3.08 / Winchester
9.7
2750 ± 50
838 ± 15
4
30.06 / Armor Piercing
10.8
2850 ± 50
868 ± 15
The chart above represents NIJ 0108.01 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
UL is a global independent safety science company offering expertise across three strategic businesses: Commerical & Industrial, Consumer and UL Venture. Our breadth, established objectivity and proven history mean we are a symbol of trust, enabling us to help provide peace of mind to all.
UL helps companies demonstrate safety, confirm compliance, enhance sustainability, manage transparency, deliver quality and performance, strengthen security, protect brand reputation, build workplace excellence, and advance societal wellbeing.
Some of the services offered by UL include: inspection, advisory services, education and training, testing, auditing and anyaltics, certification software solutions, and marketing claim verification
Level
Weapon
Caliber
Grain
Weight (G)
Speed (M/S)
# Shots
1
9mm
124
8
358
2
.357 Magnum
158
10.2
381
3
.44 Magnum
240
15.6
411
4
.30 Caliber Rifle
180
11.7
774
5
7.62 x 39mm
150
9.7
838
6
9mm
124
8
427
7
5.56x45mm / SS109 & M193
3.56
55
939
8
7.62 x 51mm
150
9.7
838
SG
12-Guage Slug | 12 Gauge Buckshot (12 Pellets)
437 | 650
28.3 | 42
483 | 336
The chart above represents UL 752 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
The purpose of the Association of Testing Centers for Anti-Aggressive Materials and Constructions (VPAM) is to promote the exchange of experience, mutual assistance in technical matters and mutual information.
Among other things, a common opinion will be made possible in central questions of the testing of attack-inhibiting materials (eg. in the development and introduction of new standards and guidelines).
Members of VPAM are independent and committed to neutrality. the testing bodies, which are members of the VPAM, work according to the relevant quality standards EN ISO / IEC 17025 (General requirements for the competence of test laboratories) and EN 45011 (General requirements for bodies which operate product certification systems.
Level
Weapon
Caliber
Weight (G)
Range (M)
Speed (M/S)
Enery (J)
VR4
7.44 Magnum
15.6 ± 0.1
5.00 ± 0.5
440 ± 10
1,510
VR5
5.56 x 45mm / M193 & SS09
4 ± 0.1
10.00 ± 0.5
950 ± 10
1,805
VR6
7.62 x 39mm
9.55 ± 0.1
10.00 ± 0.5
830 ± 10
3,289
VR7
7.62 x 51mm
9.70 ± 0.2
10.00 ± 0.5
820 ± 10
3,261
VR8
7.62 x 39mm / API BZ
7.70 ± 0.1
10.00 ± 0.5
820 ± 10
2,108
VR9
7.62 x 51mm / Armor Piercing
9.70 ± 0.2
10.00 ± 0.5
820 ± 10
3,846
VR10
7.62 x 54R / B32 API Round
10.40 ± 0.1
10.00 ± 0.5
860 ± 10
3,846
The chart above represents VPAM BRV2009 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
