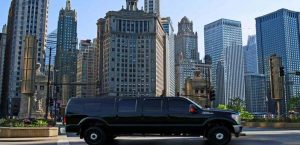

The Armored Group has developed a line of  Tactical Utility Vehicles (TUV) built on a variety  Ford Super Duty® truck platforms.  The Super Duty® provides the payload required to allow for armoring and up to twelve personnel.  These vehicles have the overall appearance of a four or six door  sport utility vehicle with low roof heights which allow access to restricted spaces such as parking garages.

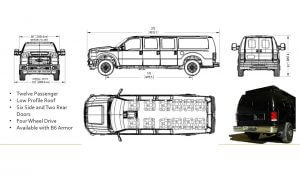

The largest TUV in the line-up  has six side doors and two rear doors for rapid deployment of 8 to 12 passengers.  This vehicle can also be used to transport and deploy a combination of personnel and tactical equipment including ROVs.

The TUV is also available in a Four-Door 10 passenger vehicle or as a Six-Door Pickup. TUV’s can be built on the F350, F450 or F550 Chassis for variety of payload and towing options.

  • 8 - 12 Passengers
  • Low Profile Roof
  • Six Side and Two Rear Doors
  • Four Wheel Drive
  • Available Non Armored or with B6 and B7 Armor Packages
  • Vertical Panel Protection
  • Certified Bullet Resistant Glass
  • Roof Protection
  • Blast Protected Floor
  • Battery & CPU Protection
  • Reinforced or TAG made Door Hinges
  • Run Flat Tire Systems
  • Door Overlap Protection
  • Professional Interior Finishing
  • Upgraded Suspension Systems
  • Reinforced Braking
  • Partial Operational Driver Window
  • Vertical Panel Protection Except Firewall
  • Roof Protection
  • Battery & CPU Protection
  • Certified Bullet Resistant Glass
  • Door Overlap Protection
  • Professional Interior Finishing
  • Light Weight Armor Packages
  • Executive Interior Packages
  • Law Enforcement Packages
  • Performance Packages
  • Color Back Up Camera
  • Front Mounted Camera
  • DVR System with Cameras and Color Monitor
  • Siren with PA System
  • Emergency Lights Front Grill
  • Emergency Lights Rear of Vehicle
  • Wig Wags Front and Back
  • LED Light Bar
  • Scene Lights
  • Self Sealing Fuel Tank
  • Fire Suppression Systems
  • High Intensity Driving Lights
  • Intersection Lights
  • Spot Lights Remote Control
  • Power Inverter
  • Hidden Reinforced Front Bumper
  • Hidden Reinforced Rear Bumper
  • Ram/Push Bumper Hidden
  • Radiator Protection
  • Radiator Protection Exterior
  • Shore Power (includes marine grade cord)
  • Kussmaul Battery Charger with Auto Eject
  • Winch
  • Winch Upgrade Package
  • Heated Windshield Upgrade
  • Operational Door Windows
  • Run Flats
  • Off Road Tire Upgrade
  • Spare Tire/Rim/Run Flat
  • Ballistic Skip Round Shields
  • Heavty Duty Running Boards
  • Intercom System
  • Radio Prep Package
  • Work Desk/Command Station
  • Parabolic Mic System
  • Emergency/Escape Hatch
  • Rotating Roof Hatch
  • Flank armor behind front fenders
  • Shocking Door Handles
  • Nail/Tack Thrower
  • Smoke Screen
  • Gun Ports – Per Gun Port
  • Battering Ram Package
  • Gas Needle Ram Pkg
  • Ram Camera System with Color Monitor
  • CBRNE Detection
  • SCBA Refill Tanks and Hook Ups
  • Thermal & Day/Night Camera with Color Monitor
  • Night Vision Camera
  • LRAD Systems
  • Recon Throwbots
  • Rescue Medic/Trauma Pac with Backboard
  • Fire Retardant Paint
  • Rear Tow Hitch with Brake Control
  • Spec Rest Sniper System
  • Weapon Mounts
  • Weapon Racks
  • Rear Seats facing rearward in Rear Officers Area
  • Blast Seats
  • EOD Package
  • Medic Package
  • LE Package
  • NBC Air Filtration System for
  • Riot Protection Package for Glass & Emergency Lights
  • Cooling Fans Cabin Mounted
  • Tow Straps
  • Mast
  • Delia Raptor Tool
  • Delia Rescue Hawk
  • Delia Life Spike
  • Skid Plates
  • Decal Installation
  • CTIS System
  • Tire Change Package: Jack, Tire Tool, Tire Chocks)
  • Spare Air Self Rescue Tanks
  • Rescue Torch System
  • Roof Rack
  • Safe in vehicle
  • Refrigerated cooler box
  • Immobilizer System
  • Dead Bolts on Doors
  • Locking Gas Cap
  • Entertainment Systems
  • 24 Volt Conversion System
  • Snorkel
  • Dual Battery

For More Information:

Call 855-824-7233 or complete the form below

Armoring Levels

The Armored Group is supremely experienced in building highly capable Tactical Utility Vehicles vehicles. There are a variety of armoring options for the Tactical Utility Vehicles. No matter your armoring requirements, The Armored Group provides all levels of armor protection including CEN, NSA, NIJ, UL and VPAM. Don’t trust the safety of your personnel or your belongings to anyone else.

When you need an armored car, it must meet your threat level. The experts at The Armored Group work with you to determine the best armored level for your situation and outfit your armored car accordingly. Please contact our experts to learn more about the armoring options for the Tactical Utility Vehicles.

Click the below armoring level tabs to learn more about each armoring level.

CEN, the European Committee of Standardization, is an association that brings together the National Standardization Bodies of 34 European Countries.

CEN provides a platform for the development of European Standards and other technical documents in relation to various kinds of products, materials, services and processes.

CEN supports standardization activities in relation to a wide range of fields and sectors including: air and space, chemicals, construction, consumer products, defense and security, energy, the environment, food and feed, health and safety, healthcare, ICT, machinery, materials, pressure equipment, services, smart living, transport and packings.
Level Weapon Caliber Weight (G) Range (M) Speed (M/S) # Shots
B1 22LR Weapon Type .22LR 2.6 ± 0.1 10.00 ± 0.5 360 ± 10 Number of Shot - 3
B2 9mm Luger Weapon Type 9mm Luger 8.0 ± 0.1 5.00 ± 0.5 400 ± 10 Number of Shot - 3
B3 357 Magnum Weapon Type .357 Magnum 10.2 ± 0.1 5.00 ± 0.5 430 ± 10 Number of Shot - 3
B4 44 Magnum Weapon Type .44 Magnum 15.6 ± 0.1 5.00 ± 0.5 440 ± 10 Number of Shot - 3
B5 5.56 x 45mm Weapon Type 5.56x45mm / SS109 & M193 4.0 ± 0.1 10.00 ± 0.5 950 ± 10 Number of Shot - 3
B6 7.62 x 51mm Ball Weapon Type 7.62 x 51mm / M80 Nato Ball 9.5 ± 0.1 10.00 ± 0.5 830 ± 10 Number of Shot - 3
B7 7.62 x 51mm AP Weapon Type 7.62 x 51mm AP 9.8 ± 0.1 10.00 ± 0.5 820 ± 10 Number of Shot - 3
The chart above represents CEN EN 1063, 1522/1523 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
logo
In Nato a Standardization Agreement (STANAG) defines processes, procedures, terms, and conditions, for a common military or technical procedures or equipments between the member countries of the alliance. Each NATO state ratifies a STANAG and implements it within their own military.

The purpose is to provide common operational and administrative procedures and logistics, so one member nation's military may use the store and support of another member's military.

STANAGs also form the basis for technical interoperability between a wide variety of communication and information systems (CIS) essential for NATO and Allied operations.
Level Weapon Caliber Weight (G) Range (M) Speed (M/S) Enery (J)
1 7.62 x 51mm Weapon Type 7.62 x 51mm / M80 Nato Ball 9.5 30 833 3,296
1 5.56 x 45mm Weapon Type 5.56 x 45mm / SS109 4 30 900 1,620
1 5.56 x 45mm Weapon Type 5.56 x 45mm / M193 3.56 30 937 1,563
2 7.62 x 39mm Weapon Type 7.62 x 39mm / API BZ Round 7.77 30 695 1,877
3 7.62 x 54mm Weapon Type 7.62 x 54mm / B32 API Round 8.4 30 854 3,647
4 14.5mm x 114 Weapon Type 14.5mm x 114 / B32 API Round 63.4 200 911 26,308
Blast Threat
Level Threat Description
1 DM-31 Anti-Personnel Mine
HG-85 Hand Grenade
DM-51 Hand Grenade
Various Unexploded Subminitions
2 6 KG Blast Anti-Tank Mine
A. Mine explosion pressure activated under any wheel or track locations
B. Mine explosion under vehicle center
3 8 KG Blast Anti-Tank Mine
A. Mine explosion pressure activated under any wheel or track locations
B. Mine explosion under vehicle center
4 10 KG Blast Anti-Tank Mine
A. Mine explosion pressure activated under any wheel or track locations
B. Mine explosion under vehicle center
Artillery Threat
155mm HE Frag Round
Simulates: 12.7mm FSP 13.4G / 20mm FSP 52 G
Level Angle (°) Elevation (°) Distance (M)
1 360 18 100
2 360 22 80
3 360 30 60
4 360 - 30
The chart above represents STANGA 4569 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles. Additionally, The Armored Group LLC follows AEP-55 guidelines for testing in our products.
logo
The Technology Assessment Program is sponsored by the Office of Development, Testing, and Dissemination of the National Institue of Justice (NIJ), U.S. Department of Justic. The progam responds to the mandate of the Justice System Improvement Act of 1979, which created the NIJ and directed it to encourage research and development to improve the criminal justice system and to disseminate the results of the Federal, State, and local agencies.

The Technology Assessment Program is an applied research effort that determines the technological needs of justice system agencies, sets minimum performance standards for specific devies, tests commercially available equipment against those standards and disseminates the standards and the test results to criminal justice agencies nationwide and internationally.
Level Weapon Caliber Weight (G) Range (FFT/S) Speed (M/S) # Shots
1 22LR Weapon Type .22LR 2.6 1050 ± 40 320 ± 12 Number of Shot - 5
2A 9mm Luger Weapon Type 9mm Luger 8.0 1250 ± 50 332 ± 12 Number of Shot - 5
2 357 Magnum Weapon Type .357 Magnum 10.2 1395 ± 15 424 ± 15 Number of Shot - 5
3A 44 Magnum Weapon Type .44 Magnum 15.55 1400 ± 50 426 ± 15 Number of Shot - 5
3 7.62mm 3.08 Weapon Type 7.62mm 3.08 / Winchester 9.7 2750 ± 50 838 ± 15 Number of Shot - 5
4 30.06 Weapon Type 30.06 / Armor Piercing 10.8 2850 ± 50 868 ± 15 Number of Shot - 1
The chart above represents NIJ 0108.01 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
logo
UL is a global independent safety science company offering expertise across three strategic businesses: Commerical & Industrial, Consumer and UL Venture. Our breadth, established objectivity and proven history mean we are a symbol of trust, enabling us to help provide peace of mind to all.

UL helps companies demonstrate safety, confirm compliance, enhance sustainability, manage transparency, deliver quality and performance, strengthen security, protect brand reputation, build workplace excellence, and advance societal wellbeing.

Some of the services offered by UL include:
inspection, advisory services, education and training, testing, auditing and anyaltics, certification software solutions, and marketing claim verification
Level Weapon Caliber Grain Weight (G) Speed (M/S) # Shots
1 9mm Luger Weapon Type 9mm 124 8 358 Number of Shot - 3
2 357 Magnum Weapon Type .357 Magnum 158 10.2 381 Number of Shot - 3
3 44 Magnum Weapon Type .44 Magnum 240 15.6 411 Number of Shot - 3
4 .30 Caliber Weapon Type .30 Caliber Rifle 180 11.7 774 Number of Shot - 1
5 7.62 x 39mm Weapon Type 7.62 x 39mm 150 9.7 838 Number of Shot - 1
6 9mm SMG Weapon Type 9mm 124 8 427 Number of Shot - 5
7 5.56 x 45mm Weapon Type 5.56x45mm / SS109 & M193 3.56 55 939 Number of Shot - 5
8 7.62 x 51mm Weapon Type 7.62 x 51mm 150 9.7 838 Number of Shot - 5
SG Shotgun Weapon Type 12-Guage Slug | 12 Gauge Buckshot (12 Pellets) 437 | 650 28.3 | 42 483 | 336 Number of Shot - 3
The chart above represents UL 752 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
logo
The purpose of the Association of Testing Centers for Anti-Aggressive Materials and Constructions (VPAM) is to promote the exchange of experience, mutual assistance in technical matters and mutual information.

Among other things, a common opinion will be made possible in central questions of the testing of attack-inhibiting materials (eg. in the development and introduction of new standards and guidelines).

Members of VPAM are independent and committed to neutrality. the testing bodies, which are members of the VPAM, work according to the relevant quality standards EN ISO / IEC 17025 (General requirements for the competence of test laboratories) and EN 45011 (General requirements for bodies which operate product certification systems.
Level Weapon Caliber Weight (G) Range (M) Speed (M/S) Enery (J)
VR4 .44 Magnum Weapon Type 7.44 Magnum 15.6 ± 0.1 5.00 ± 0.5 440 ± 10 1,510
VR5 5.56 x 45mm Weapon Type 5.56 x 45mm / M193 & SS09 4 ± 0.1 10.00 ± 0.5 950 ± 10 1,805
VR6 7.62 x 39mm Weapon Type 7.62 x 39mm 9.55 ± 0.1 10.00 ± 0.5 830 ± 10 3,289
VR7 7.62 x 51mm Weapon Type 7.62 x 51mm 9.70 ± 0.2 10.00 ± 0.5 820 ± 10 3,261
VR8 7.62 x 39mm API BZ Weapon Type 7.62 x 39mm / API BZ 7.70 ± 0.1 10.00 ± 0.5 820 ± 10 2,108
VR9 7.62 x 51mm AP Weapon Type 7.62 x 51mm / Armor Piercing 9.70 ± 0.2 10.00 ± 0.5 820 ± 10 3,846
VR10 7.62 x 54R Weapon Type 7.62 x 54R / B32 API Round 10.40 ± 0.1 10.00 ± 0.5 860 ± 10 3,846
The chart above represents VPAM BRV2009 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
