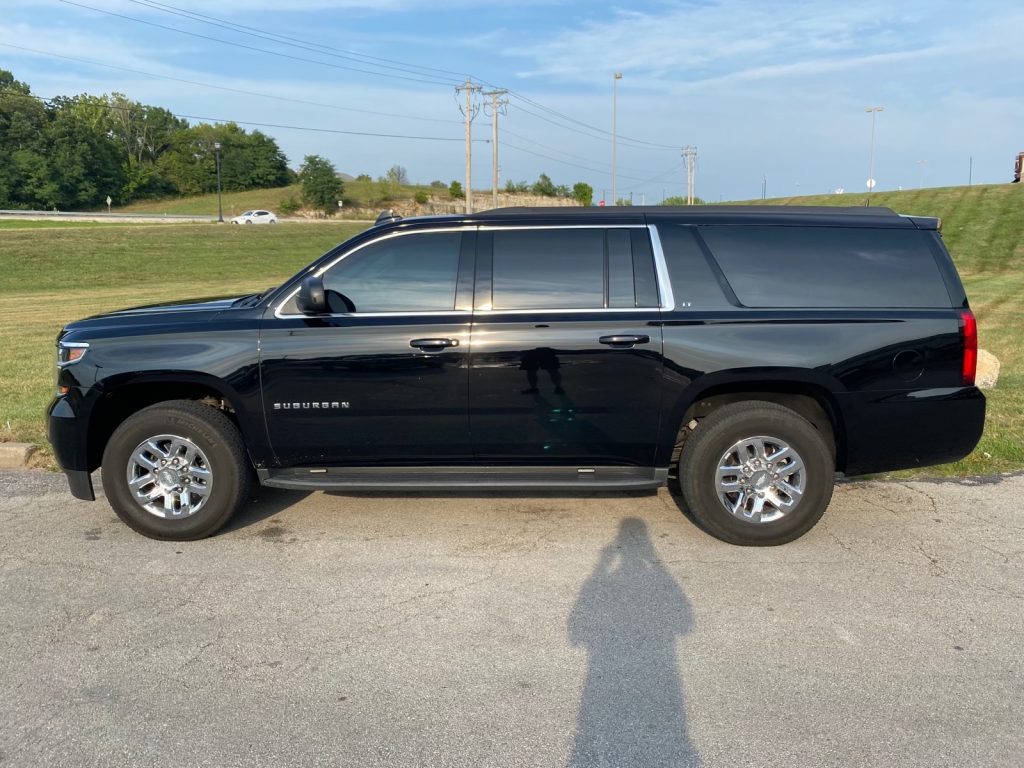

2016 Chevrolet Suburban 3500 LT

2016 Chevrolet Suburban 3500 LT

Vehicle Details

Description

2016 CHEVROLET SUBURBAN 3500 LT with B6 Armor

  • Exterior: BLACK
  • Interior:  Leather, Black/Gray
  • 4x4
  • Engine: 6.0L V8 Gasoline
  • Mileage: Approx. 17,000 Miles

ARMORING SPECIFICATIONS – All vertical panels armored, including door panels, using material by certified supplier to Level NIJ III (7.62x51mm; 7.62x39mm and lesser threats)

GLASS (TINTED)

  • Windshield                                               OEM Tint
  • Front Driver Door                                   OEM Tint
  • Front Passenger Door                           OEM Tint
  • 2nd Row Driver’s Side Door                  Legal Dark Tint (Not limo)
  • 2nd Row Passenger’s Side Door          Legal Dark Tint (Not limo)
  • ¼ Panel Glass    Armored Glass         Non Tinted
  • OEM ¼ Panel Glass                              Tinted to hide armor plate
  • Rear Barn Door Armored Glass          Non Tinted
  • Rear Door OEM Glass                          Tinted to hide armored barn door
  • Windshield replaced with OEM Curved transparent armor (glass) with material provided by certified supplier to Level NIJ III (7.62x51mm; 7.62x39mm and lesser threats)
  • Door glass replaced with transparent armor (glass) with material provided by certified supplier to Level NIJ III (7.62x51mm; 7.62x39mm and lesser threats)
  • All Door windows operational (4” to 6”)
  • Rear quarter glass left OEM with smaller transparent armor (glass) insert set inside steel module behind the OEM Glass
  • Material provided by certified supplier to Level B6 (7.62x51mm; 7.62x39mm and lesser threats)
  • Rear OEM Glass tinted to not allow ability to see internal module and keep unit looking as discreet as possible

REAR DOOR

  • Rear door kept original.  Armored bulkhead swing door behind original door with large glass insert in wall with material provided by certified supplier to Level B6 (7.62x51mm; 7.62x39mm and lesser threats)
  • Flip Down Rear Door Glass and Rear OEM Door Glass opening mechanism

DOOR REINFORCEMENTS

  • Interior door panels left OEM
  • Metal Rods Inserted into OEM Door Panel Hand Hold to keep door panel from being pulled off or break due to additional door weight
  • Nylon Overextension Straps installed to keep door from extending too far when opened
  • Upgraded Door Hinges to help eliminate door sag

ARMOR OVERLAPS

  • Overlap System around each window using ballistic material throughout will be used to ensure complete protection from gaps in vehicle.  Material by certified supplier
  • All pillar posts A, B, C and D armored by certified supplier; All overlaps will be covered to match interior and made to look OEM in appearance

2nd ROW OF SEATS

  • Captain’s Chairs (Leather)

REAR SEATS (3RD ROW)

  • Leather Rear Seats

ROOF

  • Entire roof area armored to NIJ III Levels

FLOOR

  • Floor armored using material that acts as an absorbent for blast protection

(2 DM 51 Grenades)

FIREWALL

  • Complete Internal Firewall armoring to B6 protection Level

BATTERY & CPU PROTECTION

  • Battery and computer protected with NIJ III Level ballistic steel

RUN FLATS TIRE SYSTEM

  • Run-Flats installed in all tires; including spare

FUEL TANK

  • Fuel Tank covered with blast mitigating ballistic steel

SUSPENSION & BRAKES

  • Chevrolet Suburban 1 Ton Suspension and Brakes

RADIO PACKAGE

  • Radio Installed

HIDDEN FRONT & REAR BUMPER REINFORCEMENT

  • HD Steel installed behind OEM Front and Rear Bumpers

RADIATOR PROTECTION & FRONT CLIP

  • NIJ III Hidden Radiator Protection
  • NIJ III Steel behind front fenders and headlights

For More Information:

Call 855-824-7233 or complete the form below

Armoring Levels

The Armored Group is supremely experienced in building highly capable 2016 Chevrolet Suburban 3500 LT vehicles. There are a variety of armoring options for the 2016 Chevrolet Suburban 3500 LT. No matter your armoring requirements, The Armored Group provides all levels of armor protection including CEN, NSA, NIJ, UL, and VPAM. Don’t trust the safety of your personnel or your belongings to anyone else.

When you need an armored car, it must meet your threat level. The experts at The Armored Group work with you to determine the best armored level for your situation and outfit your armored car accordingly.

Please contact our experts to learn more about the armoring options for the 2016 Chevrolet Suburban 3500 LT. Click the below armoring level tabs to learn more about each armoring level.

CEN, the European Committee of Standardization, is an association that brings together the National Standardization Bodies of 34 European Countries.

CEN provides a platform for the development of European Standards and other technical documents in relation to various kinds of products, materials, services and processes.

CEN supports standardization activities in relation to a wide range of fields and sectors including: air and space, chemicals, construction, consumer products, defense and security, energy, the environment, food and feed, health and safety, healthcare, ICT, machinery, materials, pressure equipment, services, smart living, transport and packings.
Level Weapon Caliber Weight (G) Range (M) Speed (M/S) # Shots
B1 22LR Weapon Type .22LR 2.6 ± 0.1 10.00 ± 0.5 360 ± 10 Number of Shot - 3
B2 9mm Luger Weapon Type 9mm Luger 8.0 ± 0.1 5.00 ± 0.5 400 ± 10 Number of Shot - 3
B3 357 Magnum Weapon Type .357 Magnum 10.2 ± 0.1 5.00 ± 0.5 430 ± 10 Number of Shot - 3
B4 44 Magnum Weapon Type .44 Magnum 15.6 ± 0.1 5.00 ± 0.5 440 ± 10 Number of Shot - 3
B5 5.56 x 45mm Weapon Type 5.56x45mm / SS109 & M193 4.0 ± 0.1 10.00 ± 0.5 950 ± 10 Number of Shot - 3
B6 7.62 x 51mm Ball Weapon Type 7.62 x 51mm / M80 Nato Ball 9.5 ± 0.1 10.00 ± 0.5 830 ± 10 Number of Shot - 3
B7 7.62 x 51mm AP Weapon Type 7.62 x 51mm AP 9.8 ± 0.1 10.00 ± 0.5 820 ± 10 Number of Shot - 3
The chart above represents CEN EN 1063, 1522/1523 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
logo
In Nato a Standardization Agreement (STANAG) defines processes, procedures, terms, and conditions, for a common military or technical procedures or equipments between the member countries of the alliance. Each NATO state ratifies a STANAG and implements it within their own military.

The purpose is to provide common operational and administrative procedures and logistics, so one member nation's military may use the store and support of another member's military.

STANAGs also form the basis for technical interoperability between a wide variety of communication and information systems (CIS) essential for NATO and Allied operations.
Level Weapon Caliber Weight (G) Range (M) Speed (M/S) Enery (J)
1 7.62 x 51mm Weapon Type 7.62 x 51mm / M80 Nato Ball 9.5 30 833 3,296
1 5.56 x 45mm Weapon Type 5.56 x 45mm / SS109 4 30 900 1,620
1 5.56 x 45mm Weapon Type 5.56 x 45mm / M193 3.56 30 937 1,563
2 7.62 x 39mm Weapon Type 7.62 x 39mm / API BZ Round 7.77 30 695 1,877
3 7.62 x 54mm Weapon Type 7.62 x 54mm / B32 API Round 8.4 30 854 3,647
4 14.5mm x 114 Weapon Type 14.5mm x 114 / B32 API Round 63.4 200 911 26,308
Blast Threat
Level Threat Description
1 DM-31 Anti-Personnel Mine
HG-85 Hand Grenade
DM-51 Hand Grenade
Various Unexploded Subminitions
2 6 KG Blast Anti-Tank Mine
A. Mine explosion pressure activated under any wheel or track locations
B. Mine explosion under vehicle center
3 8 KG Blast Anti-Tank Mine
A. Mine explosion pressure activated under any wheel or track locations
B. Mine explosion under vehicle center
4 10 KG Blast Anti-Tank Mine
A. Mine explosion pressure activated under any wheel or track locations
B. Mine explosion under vehicle center
Artillery Threat
155mm HE Frag Round
Simulates: 12.7mm FSP 13.4G / 20mm FSP 52 G
Level Angle (°) Elevation (°) Distance (M)
1 360 18 100
2 360 22 80
3 360 30 60
4 360 - 30
The chart above represents STANGA 4569 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles. Additionally, The Armored Group LLC follows AEP-55 guidelines for testing in our products.
logo
The Technology Assessment Program is sponsored by the Office of Development, Testing, and Dissemination of the National Institue of Justice (NIJ), U.S. Department of Justic. The progam responds to the mandate of the Justice System Improvement Act of 1979, which created the NIJ and directed it to encourage research and development to improve the criminal justice system and to disseminate the results of the Federal, State, and local agencies.

The Technology Assessment Program is an applied research effort that determines the technological needs of justice system agencies, sets minimum performance standards for specific devies, tests commercially available equipment against those standards and disseminates the standards and the test results to criminal justice agencies nationwide and internationally.
Level Weapon Caliber Weight (G) Range (FFT/S) Speed (M/S) # Shots
1 22LR Weapon Type .22LR 2.6 1050 ± 40 320 ± 12 Number of Shot - 5
2A 9mm Luger Weapon Type 9mm Luger 8.0 1250 ± 50 332 ± 12 Number of Shot - 5
2 357 Magnum Weapon Type .357 Magnum 10.2 1395 ± 15 424 ± 15 Number of Shot - 5
3A 44 Magnum Weapon Type .44 Magnum 15.55 1400 ± 50 426 ± 15 Number of Shot - 5
3 7.62mm 3.08 Weapon Type 7.62mm 3.08 / Winchester 9.7 2750 ± 50 838 ± 15 Number of Shot - 5
4 30.06 Weapon Type 30.06 / Armor Piercing 10.8 2850 ± 50 868 ± 15 Number of Shot - 1
The chart above represents NIJ 0108.01 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
logo
UL is a global independent safety science company offering expertise across three strategic businesses: Commerical & Industrial, Consumer and UL Venture. Our breadth, established objectivity and proven history mean we are a symbol of trust, enabling us to help provide peace of mind to all.

UL helps companies demonstrate safety, confirm compliance, enhance sustainability, manage transparency, deliver quality and performance, strengthen security, protect brand reputation, build workplace excellence, and advance societal wellbeing.

Some of the services offered by UL include:
inspection, advisory services, education and training, testing, auditing and anyaltics, certification software solutions, and marketing claim verification
Level Weapon Caliber Grain Weight (G) Speed (M/S) # Shots
1 9mm Luger Weapon Type 9mm 124 8 358 Number of Shot - 3
2 357 Magnum Weapon Type .357 Magnum 158 10.2 381 Number of Shot - 3
3 44 Magnum Weapon Type .44 Magnum 240 15.6 411 Number of Shot - 3
4 .30 Caliber Weapon Type .30 Caliber Rifle 180 11.7 774 Number of Shot - 1
5 7.62 x 39mm Weapon Type 7.62 x 39mm 150 9.7 838 Number of Shot - 1
6 9mm SMG Weapon Type 9mm 124 8 427 Number of Shot - 5
7 5.56 x 45mm Weapon Type 5.56x45mm / SS109 & M193 3.56 55 939 Number of Shot - 5
8 7.62 x 51mm Weapon Type 7.62 x 51mm 150 9.7 838 Number of Shot - 5
SG Shotgun Weapon Type 12-Guage Slug | 12 Gauge Buckshot (12 Pellets) 437 | 650 28.3 | 42 483 | 336 Number of Shot - 3
The chart above represents UL 752 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
logo
The purpose of the Association of Testing Centers for Anti-Aggressive Materials and Constructions (VPAM) is to promote the exchange of experience, mutual assistance in technical matters and mutual information.

Among other things, a common opinion will be made possible in central questions of the testing of attack-inhibiting materials (eg. in the development and introduction of new standards and guidelines).

Members of VPAM are independent and committed to neutrality. the testing bodies, which are members of the VPAM, work according to the relevant quality standards EN ISO / IEC 17025 (General requirements for the competence of test laboratories) and EN 45011 (General requirements for bodies which operate product certification systems.
Level Weapon Caliber Weight (G) Range (M) Speed (M/S) Enery (J)
VR4 .44 Magnum Weapon Type 7.44 Magnum 15.6 ± 0.1 5.00 ± 0.5 440 ± 10 1,510
VR5 5.56 x 45mm Weapon Type 5.56 x 45mm / M193 & SS09 4 ± 0.1 10.00 ± 0.5 950 ± 10 1,805
VR6 7.62 x 39mm Weapon Type 7.62 x 39mm 9.55 ± 0.1 10.00 ± 0.5 830 ± 10 3,289
VR7 7.62 x 51mm Weapon Type 7.62 x 51mm 9.70 ± 0.2 10.00 ± 0.5 820 ± 10 3,261
VR8 7.62 x 39mm API BZ Weapon Type 7.62 x 39mm / API BZ 7.70 ± 0.1 10.00 ± 0.5 820 ± 10 2,108
VR9 7.62 x 51mm AP Weapon Type 7.62 x 51mm / Armor Piercing 9.70 ± 0.2 10.00 ± 0.5 820 ± 10 3,846
VR10 7.62 x 54R Weapon Type 7.62 x 54R / B32 API Round 10.40 ± 0.1 10.00 ± 0.5 860 ± 10 3,846
The chart above represents VPAM BRV2009 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
