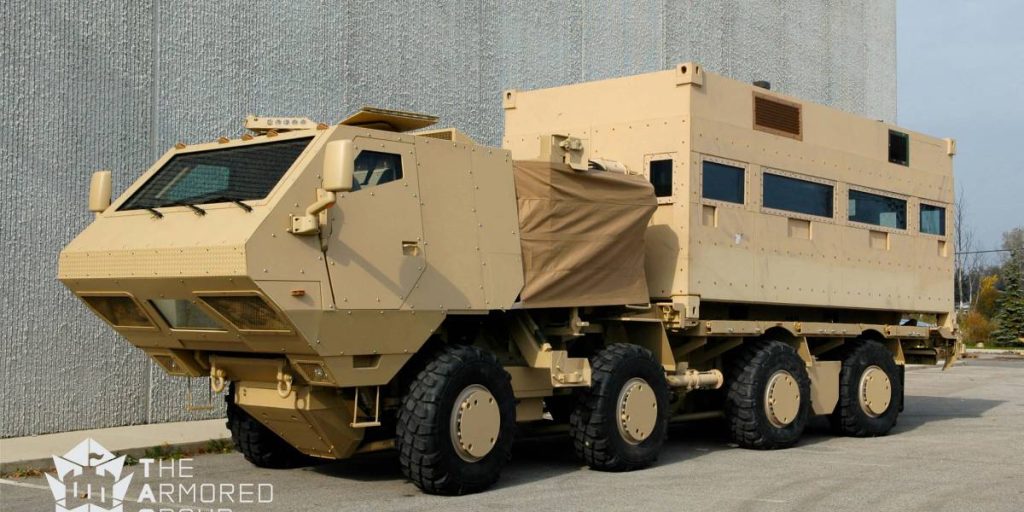

A 10) GREAT DANE

The GREAT DANE is a brother to the Mastiff, a highly capable and customize-able vehicle produced in variants of 4,6,8 or 10 wheels.  The Great Dane is a container mover with the ability to load, transport and unload equipment quickly and easily.

Powered by a 600 hp caterpillar engine with 6 speed transmission, in a fully protected engine assembly, the Great Dane has a great  amount of power available. The Great Dane also features driver selectable all wheel steering, high wheel travel, joystick operated active suspension as well as lowering suspensions for quick troop ingress/egress.

POWERTRAIN
Engine make Caterpillar
Engine model C13
Engine type Turbo charged diesel I6
Displacement, l 12.5
Maximum Power, hp 600
Maximum Torque, Nm 2373
Fuel type diesel
RUNNING GEAR
Driveline 8x8x8 (all wheels steering)
Axle and suspension FR Independent hydropneumatic with adjustable ride height
Axle and suspension RR
Transfer case 2 speed
Run flat inserts Yes
CTIS / STIS CTIS
Brakes FR Pneumatic drum brakes
Brakes RR Pneumatic drum brakes
ELECTRICAL SYSTEM
Voltage Dual 12V and 24V
Batteries 2
Alternator 570A
Auxiliary sockets 12V Yes
120 / 220V AC external power input Optional
NATO slave starting system Yes
Battery monitor Yes
