The BATT®-XL (Ballistic Armored Tactical Transport®) is the largest vehicle in the BATT® Family.  It is ideal for law enforcement agencies and tactical teams that need to carry larger numbers of officers, require the ability to stand, or be used as an armored command center.  The BATT®-XL is built on a heavy duty Navistar commercial grade chassis with a robust diesel engine and automatic transmission.  Our custom BATT®-XL body was specifically designed for highly volatile environments where eminent dangers are commonplace.  TAG takes great care to build the BATT®-XL where it maximizes its maneuverability and ballistic protection levels.  The BATT®-XL can be ordered in NIJ III/B6 or NIJ IV/B7 +.50 Caliber Ball Protection Levels.

BATT®-XL Features

Our BATT®-XL series includes features that add a higher level of comfort and safety than most other armored vehicles. We designed the BATT®-XL series to accommodate fully geared officers comfortably and with the utmost security. BATT®-XL models with the complete protection package have features that include:

  • Blast mitigating floor.
  • Internal armored firewall.
  • Rifle-rated roof protection.
  • Fully armored hood clip.
  • Best-in-class climate control system.
  • Dual heating and air conditioning systems in front and back.
  • Front door lockout ability at 90 and 45 degrees.
  • Rear door lockout ability at 90 degrees.
  • Long-gun optic-ready gun ports.
  • 4x4 (Four-wheel drive) off-road capabilities.

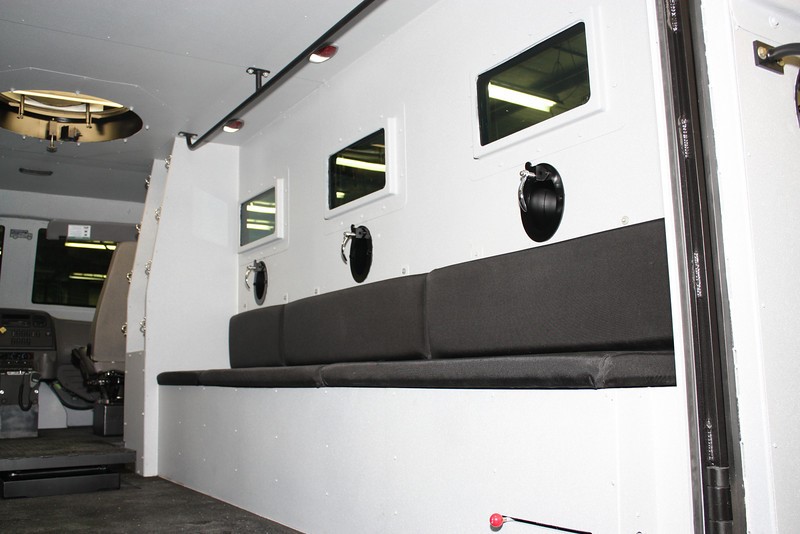

  • Enclosed under-seat storage in rear compartment.

Why Choose BATT®-XL?

The engineers at TAG wanted to give teams an incredibly protected vehicle that offered increased seating room for officers, improved payload ability, more advantages to complete their missions. These vehicles come armored in Level NIJ IV/B7 and NIJ III/B6, or a mixture of the two, depending on your requirements.

Base Armor Specifications BATT XL

  • Vertical Panel Protection
  • Firewall Armor
  • Roof Protection
  • Blast Protected Floor
  • TAG Exclusive Tilt Forward Armored Front Hood Clip/Engine Bay
  • Certified Bullet Resistant Glass
  • TAG Exclusive Door Gap Protection
  • Industry Leading HVAC Systems
  • Upgraded Suspension
  • Gun Ports
  • Running Boards
  • Emergency Lights
  • Siren and PA
  • Insulation Package
  • Single or Double Rear Doors
  • Padded Rear Bench Seats
  • Escape Hatch
  • High Output Headlights
  • 4x4 Conversion
  • Additional Side Door
  • Multi Plex Control Panel System
  • Color Back Up Camera
  • 6 Camera System with DVR
  • 2000W Power Inverter Plugs and Battery Back Up
  • 3600W Power Inverter, Plugs, & Battery Back Up
  • 24 Volt Conversion System
  • Shore Power (includes marine grade cord)
  • Kussmaul Battery Charger
  • Kussmaul Auto Eject Plug
  • 16.5 Electric Power Winch
  • Winch Upgrade Package: Synthetic Cable, (3) Screw Pin Shackles, (2) Snatch Blocks, Kinetic Rope
  • Heated Windshield Upgrade
  • Roof Mounted Remote Control Spot Light (1 each)
  • Roof Mounted Remote Control Spot Light LED (1 each)
  • Federal Signal Valor LED Police Light Bar
  • LED Police Style Light Bar
  • Intersection Lights on Side Fenders
  • Ballistic Skip Round Shields
  • Flip Out Running Boards
  • Turret Protection Package
  • Cupola Turret Top (Base Package)
  • Light Weight Cupola Turret Top
  • Automatic Sniper Step
  • Sniper Protection Lid (18" Tall)
  • Intercom System
  • Radio Prep Package
  • Battering Ram Package
  • Base Hydraulic Ram
  • Multi Position Hydraulic Ram Pkg
  • Gas Needle Ram Pkg
  • Ram Camera System with Color Monitor
  • Service Manuals
  • Run Flats (Set of 6)
  • Quad Tire Package
  • CBRNE Detection
  • Front Axle Upgrade to 12,000lbs Capacity
  • 335/80R20 for BATT V Package Spare Tire & Rim with Run Flat Shipped Loose
  • Spare Tire Mount on Vehicle
  • SCBA Refill Tanks and Hook Ups
  • Day/Night & Thermal Camera with Color Monitor
  • US Night Vision ATAC 360 Thermal Camea
  • Throwbot
  • CMS Package to allow Remote Viewing
  • Rescue Medic/Trauma Pac with Backboard
  • LRAD Wiring for Customer Supplied Unit
  • LRAD Mounting
  • LRAD 100 Series with Magnetic Base
  • LRAD 300 Series
  • LRAD 450 Series
  • LRAD 500 Series
  • LRAD Wireless Kit for all Series
  • LRAD Tri Pod Kit (Medium)
  • LRAD Additional Lithium Battery for 100 Series
  • LRAD Magnetic Mount (Medium)
  • LRAD Power Pack w/Charger
  • High Gloss Paint
  • Two Tone Paint
  • Fire Retardant Paint
  • Plasma Ropes Under Seats (Red)
  • Rear Tow Hitch with Brake Control (changes rear bumper dims)
  • Spec Rest Sniper System (Vehilce and Ground Mount Included)
  • Gun Mount for 240/.50 with Pedastal
  • Upgraded Stereo with CD/MP3/USB and 2 Speakers
  • (2) Individual Rear Seats facing rearward in Rear Officers Area
  • Blast Seats
  • Seat Belts for Rear Bench Seats
  • Center Mounted Bench Seating
  • 4 Door Package
  • BATT EOD Package
  • BATT Medic Package
  • NBC Air Filtration System for BATT
  • Riot Protection Package for Glass & Emergency Lights
  • (2) Rear Officer's Area Cooling Fans
  • Internal Blue Lights
  • (2) Tow Straps
  • Dry Erase Board
  • Individual AR Style Weapon Mounts (For inside cabin area) Set of 2
  • Mast
  • Driving Lights with High Intensity
  • Litters
  • Additional Optic Ports
  • Roof Mounted Storage Box
  • Emergency/Escape Hatch
  • Fire Suppression System
  • Delia Raptor Tool
  • Delia Rescue Hawk
  • Delia Life Spike
  • Parabolic Mic System
  • Computer Station
  • Work Desk/Command Station
  • Front Mounted Camera
  • Skid Plates
  • Under Bench Seat Lighting System
  • USB Port Plug In Stations (6 Stations)
  • Additional Color Monitor
  • Decal Installation (Customer Supplied Decals)
  • CTIS System
  • Tire Change Package: Jack, Tire Tool, Tire Chocks)
  • Spare Air Self Rescue Tanks (Per Tank)
  • Rescue Torch System

For More Information:

Call 855-824-7233 or complete the form below

Armoring Levels

The Armored Group is supremely experienced in building highly capable BATT XL vehicles. There are a variety of armoring options for the BATT XL. No matter your armoring requirements, The Armored Group provides all levels of armor protection including CEN, NSA, NIJ, UL and VPAM. Don’t trust the safety of your personnel or your belongings to anyone else.

When you need an armored car, it must meet your threat level. The experts at The Armored Group work with you to determine the best armored level for your situation and outfit your armored car accordingly. Please contact our experts to learn more about the armoring options for the BATT XL.

Click the below armoring level tabs to learn more about each armoring level.

CEN, the European Committee of Standardization, is an association that brings together the National Standardization Bodies of 34 European Countries.

CEN provides a platform for the development of European Standards and other technical documents in relation to various kinds of products, materials, services and processes.

CEN supports standardization activities in relation to a wide range of fields and sectors including: air and space, chemicals, construction, consumer products, defense and security, energy, the environment, food and feed, health and safety, healthcare, ICT, machinery, materials, pressure equipment, services, smart living, transport and packings.
Level Weapon Caliber Weight (G) Range (M) Speed (M/S) # Shots
B1 22LR Weapon Type .22LR 2.6 ± 0.1 10.00 ± 0.5 360 ± 10 Number of Shot - 3
B2 9mm Luger Weapon Type 9mm Luger 8.0 ± 0.1 5.00 ± 0.5 400 ± 10 Number of Shot - 3
B3 357 Magnum Weapon Type .357 Magnum 10.2 ± 0.1 5.00 ± 0.5 430 ± 10 Number of Shot - 3
B4 44 Magnum Weapon Type .44 Magnum 15.6 ± 0.1 5.00 ± 0.5 440 ± 10 Number of Shot - 3
B5 5.56 x 45mm Weapon Type 5.56x45mm / SS109 & M193 4.0 ± 0.1 10.00 ± 0.5 950 ± 10 Number of Shot - 3
B6 7.62 x 51mm Ball Weapon Type 7.62 x 51mm / M80 Nato Ball 9.5 ± 0.1 10.00 ± 0.5 830 ± 10 Number of Shot - 3
B7 7.62 x 51mm AP Weapon Type 7.62 x 51mm AP 9.8 ± 0.1 10.00 ± 0.5 820 ± 10 Number of Shot - 3
The chart above represents CEN EN 1063, 1522/1523 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
logo
In Nato a Standardization Agreement (STANAG) defines processes, procedures, terms, and conditions, for a common military or technical procedures or equipments between the member countries of the alliance. Each NATO state ratifies a STANAG and implements it within their own military.

The purpose is to provide common operational and administrative procedures and logistics, so one member nation's military may use the store and support of another member's military.

STANAGs also form the basis for technical interoperability between a wide variety of communication and information systems (CIS) essential for NATO and Allied operations.
Level Weapon Caliber Weight (G) Range (M) Speed (M/S) Enery (J)
1 7.62 x 51mm Weapon Type 7.62 x 51mm / M80 Nato Ball 9.5 30 833 3,296
1 5.56 x 45mm Weapon Type 5.56 x 45mm / SS109 4 30 900 1,620
1 5.56 x 45mm Weapon Type 5.56 x 45mm / M193 3.56 30 937 1,563
2 7.62 x 39mm Weapon Type 7.62 x 39mm / API BZ Round 7.77 30 695 1,877
3 7.62 x 54mm Weapon Type 7.62 x 54mm / B32 API Round 8.4 30 854 3,647
4 14.5mm x 114 Weapon Type 14.5mm x 114 / B32 API Round 63.4 200 911 26,308
Blast Threat
Level Threat Description
1 DM-31 Anti-Personnel Mine
HG-85 Hand Grenade
DM-51 Hand Grenade
Various Unexploded Subminitions
2 6 KG Blast Anti-Tank Mine
A. Mine explosion pressure activated under any wheel or track locations
B. Mine explosion under vehicle center
3 8 KG Blast Anti-Tank Mine
A. Mine explosion pressure activated under any wheel or track locations
B. Mine explosion under vehicle center
4 10 KG Blast Anti-Tank Mine
A. Mine explosion pressure activated under any wheel or track locations
B. Mine explosion under vehicle center
Artillery Threat
155mm HE Frag Round
Simulates: 12.7mm FSP 13.4G / 20mm FSP 52 G
Level Angle (°) Elevation (°) Distance (M)
1 360 18 100
2 360 22 80
3 360 30 60
4 360 - 30
The chart above represents STANGA 4569 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles. Additionally, The Armored Group LLC follows AEP-55 guidelines for testing in our products.
logo
The Technology Assessment Program is sponsored by the Office of Development, Testing, and Dissemination of the National Institue of Justice (NIJ), U.S. Department of Justic. The progam responds to the mandate of the Justice System Improvement Act of 1979, which created the NIJ and directed it to encourage research and development to improve the criminal justice system and to disseminate the results of the Federal, State, and local agencies.

The Technology Assessment Program is an applied research effort that determines the technological needs of justice system agencies, sets minimum performance standards for specific devies, tests commercially available equipment against those standards and disseminates the standards and the test results to criminal justice agencies nationwide and internationally.
Level Weapon Caliber Weight (G) Range (FFT/S) Speed (M/S) # Shots
1 22LR Weapon Type .22LR 2.6 1050 ± 40 320 ± 12 Number of Shot - 5
2A 9mm Luger Weapon Type 9mm Luger 8.0 1250 ± 50 332 ± 12 Number of Shot - 5
2 357 Magnum Weapon Type .357 Magnum 10.2 1395 ± 15 424 ± 15 Number of Shot - 5
3A 44 Magnum Weapon Type .44 Magnum 15.55 1400 ± 50 426 ± 15 Number of Shot - 5
3 7.62mm 3.08 Weapon Type 7.62mm 3.08 / Winchester 9.7 2750 ± 50 838 ± 15 Number of Shot - 5
4 30.06 Weapon Type 30.06 / Armor Piercing 10.8 2850 ± 50 868 ± 15 Number of Shot - 1
The chart above represents NIJ 0108.01 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
logo
UL is a global independent safety science company offering expertise across three strategic businesses: Commerical & Industrial, Consumer and UL Venture. Our breadth, established objectivity and proven history mean we are a symbol of trust, enabling us to help provide peace of mind to all.

UL helps companies demonstrate safety, confirm compliance, enhance sustainability, manage transparency, deliver quality and performance, strengthen security, protect brand reputation, build workplace excellence, and advance societal wellbeing.

Some of the services offered by UL include:
inspection, advisory services, education and training, testing, auditing and anyaltics, certification software solutions, and marketing claim verification
Level Weapon Caliber Grain Weight (G) Speed (M/S) # Shots
1 9mm Luger Weapon Type 9mm 124 8 358 Number of Shot - 3
2 357 Magnum Weapon Type .357 Magnum 158 10.2 381 Number of Shot - 3
3 44 Magnum Weapon Type .44 Magnum 240 15.6 411 Number of Shot - 3
4 .30 Caliber Weapon Type .30 Caliber Rifle 180 11.7 774 Number of Shot - 1
5 7.62 x 39mm Weapon Type 7.62 x 39mm 150 9.7 838 Number of Shot - 1
6 9mm SMG Weapon Type 9mm 124 8 427 Number of Shot - 5
7 5.56 x 45mm Weapon Type 5.56x45mm / SS109 & M193 3.56 55 939 Number of Shot - 5
8 7.62 x 51mm Weapon Type 7.62 x 51mm 150 9.7 838 Number of Shot - 5
SG Shotgun Weapon Type 12-Guage Slug | 12 Gauge Buckshot (12 Pellets) 437 | 650 28.3 | 42 483 | 336 Number of Shot - 3
The chart above represents UL 752 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
logo
The purpose of the Association of Testing Centers for Anti-Aggressive Materials and Constructions (VPAM) is to promote the exchange of experience, mutual assistance in technical matters and mutual information.

Among other things, a common opinion will be made possible in central questions of the testing of attack-inhibiting materials (eg. in the development and introduction of new standards and guidelines).

Members of VPAM are independent and committed to neutrality. the testing bodies, which are members of the VPAM, work according to the relevant quality standards EN ISO / IEC 17025 (General requirements for the competence of test laboratories) and EN 45011 (General requirements for bodies which operate product certification systems.
Level Weapon Caliber Weight (G) Range (M) Speed (M/S) Enery (J)
VR4 .44 Magnum Weapon Type 7.44 Magnum 15.6 ± 0.1 5.00 ± 0.5 440 ± 10 1,510
VR5 5.56 x 45mm Weapon Type 5.56 x 45mm / M193 & SS09 4 ± 0.1 10.00 ± 0.5 950 ± 10 1,805
VR6 7.62 x 39mm Weapon Type 7.62 x 39mm 9.55 ± 0.1 10.00 ± 0.5 830 ± 10 3,289
VR7 7.62 x 51mm Weapon Type 7.62 x 51mm 9.70 ± 0.2 10.00 ± 0.5 820 ± 10 3,261
VR8 7.62 x 39mm API BZ Weapon Type 7.62 x 39mm / API BZ 7.70 ± 0.1 10.00 ± 0.5 820 ± 10 2,108
VR9 7.62 x 51mm AP Weapon Type 7.62 x 51mm / Armor Piercing 9.70 ± 0.2 10.00 ± 0.5 820 ± 10 3,846
VR10 7.62 x 54R Weapon Type 7.62 x 54R / B32 API Round 10.40 ± 0.1 10.00 ± 0.5 860 ± 10 3,846
The chart above represents VPAM BRV2009 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
