2020 CADILLAC ESCALADE ESV PLATINUM

2020 CADILLAC ESCALADE ESV PLATINUM

Vehicle Details

Description

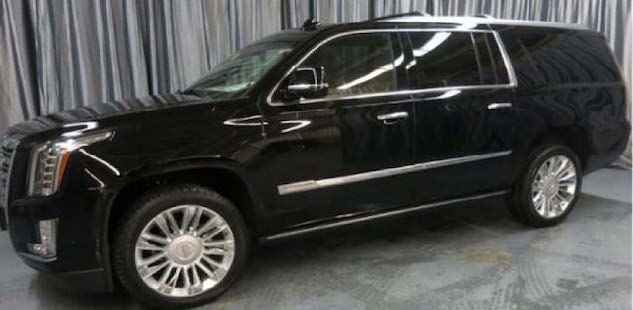

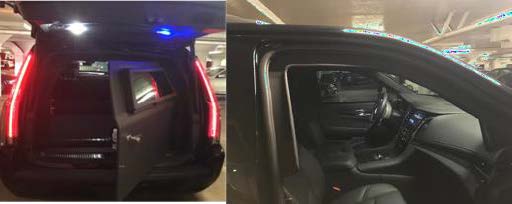

Pre-Owned 2020 Escalade ESV Platinum with B6 Armor- We have TWO available!

• Exterior: Black
• Interior: Black
• Drive wheels: 4WD
• Engine: V8 Petrol
• Transmission: Automatic
• Mileage: 5,000 Miles

ARMORING SPECIFICATIONS – ARMOR LEVEL CEN BR6 (.308 Win. and below calibers)
Transparent Armor (Glass):
• Door glass replaced with transparent armor (glass) OEM curved shape
• Windshield replaced with transparent armor (glass) OEM curved shape
• Quarter glass view port with transparent armor (glass) OEM flat shape
• All glass to have overlap system around each window with returns. This ensures complete
protection from spacing between armor plate and transparent armor

Doors:
• All four (4) doors armored using ballistic plate
• Armored rear bulkhead behind OEM unarmored tailgate.
• All doors to have overlap system with returns to ensures complete protection from spacing between
armor plate and transparent armor
• Door pillars (A, B, C and D) reinforced throughout with ballistic plate
• Door hinges reinforced from interior of door and frame of vehicle to reduce stress of weight added
• Heavy-duty door straps added on all doors to allow no over extension
• Firewall, Battery Box, Roof, Fuel Tank and Floor Armored

Additional Options Added:
• (2) Operable driver and front passenger windows and (2) operable rear passenger windows, Brembo HD Brake Upgrade w/rotor, caliper and ceramic pads; secondary battery w/driver isolator switch, trickle charge and battery shutoff switch for long term storage, engine bay fire suppression, front & rear red/blue strobe lights (law enforcement spec), white front & rear strobe lights (State Dept. & Secrete Service spec), PA/Siren w/200W speaker, (5) door electric dead bolt system, and driver door indoor/outdoor intercom and air filtration system

For More Information:

Call 855-824-7233 or complete the form below

Armoring Levels

The Armored Group is supremely experienced in building highly capable 2020 CADILLAC ESCALADE ESV PLATINUM vehicles. There are a variety of armoring options for the 2020 CADILLAC ESCALADE ESV PLATINUM. No matter your armoring requirements, The Armored Group provides all levels of armor protection including CEN, NSA, NIJ, UL and VPAM. Don’t trust the safety of your personnel or your belongings to anyone else.

When you need an armored car, it must meet your threat level. The experts at The Armored Group work with you to determine the best armored level for your situation and outfit your armored car accordingly. Please contact our experts to learn more about the armoring options for the 2020 CADILLAC ESCALADE ESV PLATINUM.

Click the below armoring level tabs to learn more about each armoring level.
CEN, the European Committee of Standardization, is an association that brings together the National Standardization Bodies of 34 European Countries.

CEN provides a platform for the development of European Standards and other technical documents in relation to various kinds of products, materials, services and processes.

CEN supports standardization activities in relation to a wide range of fields and sectors including: air and space, chemicals, construction, consumer products, defense and security, energy, the environment, food and feed, health and safety, healthcare, ICT, machinery, materials, pressure equipment, services, smart living, transport and packings.
Level Weapon Caliber Weight (G) Range (M) Speed (M/S) # Shots
B1 22LR Weapon Type .22LR 2.6 ± 0.1 10.00 ± 0.5 360 ± 10 Number of Shot - 3
B2 9mm Luger Weapon Type 9mm Luger 8.0 ± 0.1 5.00 ± 0.5 400 ± 10 Number of Shot - 3
B3 357 Magnum Weapon Type .357 Magnum 10.2 ± 0.1 5.00 ± 0.5 430 ± 10 Number of Shot - 3
B4 44 Magnum Weapon Type .44 Magnum 15.6 ± 0.1 5.00 ± 0.5 440 ± 10 Number of Shot - 3
B5 5.56 x 45mm Weapon Type 5.56x45mm / SS109 & M193 4.0 ± 0.1 10.00 ± 0.5 950 ± 10 Number of Shot - 3
B6 7.62 x 51mm Ball Weapon Type 7.62 x 51mm / M80 Nato Ball 9.5 ± 0.1 10.00 ± 0.5 830 ± 10 Number of Shot - 3
B7 7.62 x 51mm AP Weapon Type 7.62 x 51mm AP 9.8 ± 0.1 10.00 ± 0.5 820 ± 10 Number of Shot - 3
The chart above represents CEN EN 1063, 1522/1523 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
logo
In Nato a Standardization Agreement (STANAG) defines processes, procedures, terms, and conditions, for a common military or technical procedures or equipments between the member countries of the alliance. Each NATO state ratifies a STANAG and implements it within their own military.

The purpose is to provide common operational and administrative procedures and logistics, so one member nation's military may use the store and support of another member's military.

STANAGs also form the basis for technical interoperability between a wide variety of communication and information systems (CIS) essential for NATO and Allied operations.
Level Weapon Caliber Weight (G) Range (M) Speed (M/S) Enery (J)
1 7.62 x 51mm Weapon Type 7.62 x 51mm / M80 Nato Ball 9.5 30 833 3,296
1 5.56 x 45mm Weapon Type 5.56 x 45mm / SS109 4 30 900 1,620
1 5.56 x 45mm Weapon Type 5.56 x 45mm / M193 3.56 30 937 1,563
2 7.62 x 39mm Weapon Type 7.62 x 39mm / API BZ Round 7.77 30 695 1,877
3 7.62 x 54mm Weapon Type 7.62 x 54mm / B32 API Round 8.4 30 854 3,647
4 14.5mm x 114 Weapon Type 14.5mm x 114 / B32 API Round 63.4 200 911 26,308
Blast Threat
Level Threat Description
1 DM-31 Anti-Personnel Mine
HG-85 Hand Grenade
DM-51 Hand Grenade
Various Unexploded Subminitions
2 6 KG Blast Anti-Tank Mine
A. Mine explosion pressure activated under any wheel or track locations
B. Mine explosion under vehicle center
3 8 KG Blast Anti-Tank Mine
A. Mine explosion pressure activated under any wheel or track locations
B. Mine explosion under vehicle center
4 10 KG Blast Anti-Tank Mine
A. Mine explosion pressure activated under any wheel or track locations
B. Mine explosion under vehicle center
Artillery Threat
155mm HE Frag Round
Simulates: 12.7mm FSP 13.4G / 20mm FSP 52 G
Level Angle (°) Elevation (°) Distance (M)
1 360 18 100
2 360 22 80
3 360 30 60
4 360 - 30
The chart above represents STANGA 4569 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles. Additionally, The Armored Group LLC follows AEP-55 guidelines for testing in our products.
logo
The Technology Assessment Program is sponsored by the Office of Development, Testing, and Dissemination of the National Institue of Justice (NIJ), U.S. Department of Justic. The progam responds to the mandate of the Justice System Improvement Act of 1979, which created the NIJ and directed it to encourage research and development to improve the criminal justice system and to disseminate the results of the Federal, State, and local agencies.

The Technology Assessment Program is an applied research effort that determines the technological needs of justice system agencies, sets minimum performance standards for specific devies, tests commercially available equipment against those standards and disseminates the standards and the test results to criminal justice agencies nationwide and internationally.
Level Weapon Caliber Weight (G) Range (FFT/S) Speed (M/S) # Shots
1 22LR Weapon Type .22LR 2.6 1050 ± 40 320 ± 12 Number of Shot - 5
2A 9mm Luger Weapon Type 9mm Luger 8.0 1250 ± 50 332 ± 12 Number of Shot - 5
2 357 Magnum Weapon Type .357 Magnum 10.2 1395 ± 15 424 ± 15 Number of Shot - 5
3A 44 Magnum Weapon Type .44 Magnum 15.55 1400 ± 50 426 ± 15 Number of Shot - 5
3 7.62mm 3.08 Weapon Type 7.62mm 3.08 / Winchester 9.7 2750 ± 50 838 ± 15 Number of Shot - 5
4 30.06 Weapon Type 30.06 / Armor Piercing 10.8 2850 ± 50 868 ± 15 Number of Shot - 1
The chart above represents NIJ 0108.01 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
logo
UL is a global independent safety science company offering expertise across three strategic businesses: Commerical & Industrial, Consumer and UL Venture. Our breadth, established objectivity and proven history mean we are a symbol of trust, enabling us to help provide peace of mind to all.

UL helps companies demonstrate safety, confirm compliance, enhance sustainability, manage transparency, deliver quality and performance, strengthen security, protect brand reputation, build workplace excellence, and advance societal wellbeing.

Some of the services offered by UL include:
inspection, advisory services, education and training, testing, auditing and anyaltics, certification software solutions, and marketing claim verification
Level Weapon Caliber Grain Weight (G) Speed (M/S) # Shots
1 9mm Luger Weapon Type 9mm 124 8 358 Number of Shot - 3
2 357 Magnum Weapon Type .357 Magnum 158 10.2 381 Number of Shot - 3
3 44 Magnum Weapon Type .44 Magnum 240 15.6 411 Number of Shot - 3
4 .30 Caliber Weapon Type .30 Caliber Rifle 180 11.7 774 Number of Shot - 1
5 7.62 x 39mm Weapon Type 7.62 x 39mm 150 9.7 838 Number of Shot - 1
6 9mm SMG Weapon Type 9mm 124 8 427 Number of Shot - 5
7 5.56 x 45mm Weapon Type 5.56x45mm / SS109 & M193 3.56 55 939 Number of Shot - 5
8 7.62 x 51mm Weapon Type 7.62 x 51mm 150 9.7 838 Number of Shot - 5
SG Shotgun Weapon Type 12-Guage Slug | 12 Gauge Buckshot (12 Pellets) 437 | 650 28.3 | 42 483 | 336 Number of Shot - 3
The chart above represents UL 752 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
logo
The purpose of the Association of Testing Centers for Anti-Aggressive Materials and Constructions (VPAM) is to promote the exchange of experience, mutual assistance in technical matters and mutual information.

Among other things, a common opinion will be made possible in central questions of the testing of attack-inhibiting materials (eg. in the development and introduction of new standards and guidelines).

Members of VPAM are independent and committed to neutrality. the testing bodies, which are members of the VPAM, work according to the relevant quality standards EN ISO / IEC 17025 (General requirements for the competence of test laboratories) and EN 45011 (General requirements for bodies which operate product certification systems.
Level Weapon Caliber Weight (G) Range (M) Speed (M/S) Enery (J)
VR4 .44 Magnum Weapon Type 7.44 Magnum 15.6 ± 0.1 5.00 ± 0.5 440 ± 10 1,510
VR5 5.56 x 45mm Weapon Type 5.56 x 45mm / M193 & SS09 4 ± 0.1 10.00 ± 0.5 950 ± 10 1,805
VR6 7.62 x 39mm Weapon Type 7.62 x 39mm 9.55 ± 0.1 10.00 ± 0.5 830 ± 10 3,289
VR7 7.62 x 51mm Weapon Type 7.62 x 51mm 9.70 ± 0.2 10.00 ± 0.5 820 ± 10 3,261
VR8 7.62 x 39mm API BZ Weapon Type 7.62 x 39mm / API BZ 7.70 ± 0.1 10.00 ± 0.5 820 ± 10 2,108
VR9 7.62 x 51mm AP Weapon Type 7.62 x 51mm / Armor Piercing 9.70 ± 0.2 10.00 ± 0.5 820 ± 10 3,846
VR10 7.62 x 54R Weapon Type 7.62 x 54R / B32 API Round 10.40 ± 0.1 10.00 ± 0.5 860 ± 10 3,846
The chart above represents VPAM BRV2009 ballistic standards for the performance of bullet proof materials. This chart has been designed for ease of understanding the protection levels our clients desire for their armored vehicles.
